How to Configure and Connect the Encvoy ID Mini-widget#

In this guide, you will learn how to connect and configure the Encvoy ID mini-widget on your web resource. You will learn how to set up authentication parameters, user profile display, login buttons, and menus, as well as customize the widget's appearance to harmonize with your project's design.

Table of Contents:

What is a mini-widget?
Widget Configuration
Profile Display Settings
Login Button Settings
Menu Button Parameters
Mini-widget Styling
Individual Menu Button Styling
See Also

A mini-widget is a menu containing user data and essential functions. It provides access to the profile, admin panel, organizations or small office, and system logout. You can also place an application here for quick access. The widget opens when clicking the user's avatar in the top right corner of the screen.

The mini-widget is a lightweight JavaScript component for user authentication in the Encvoy ID service. It operates based on OIDC/OAuth2 and PKCE standards and can be embedded into any websites or interfaces — from simple HTML to SPAs on React or Vue.

💡 To add an application to the mini-widget, enable the Display in Mini-Widget toggle in the application settings.

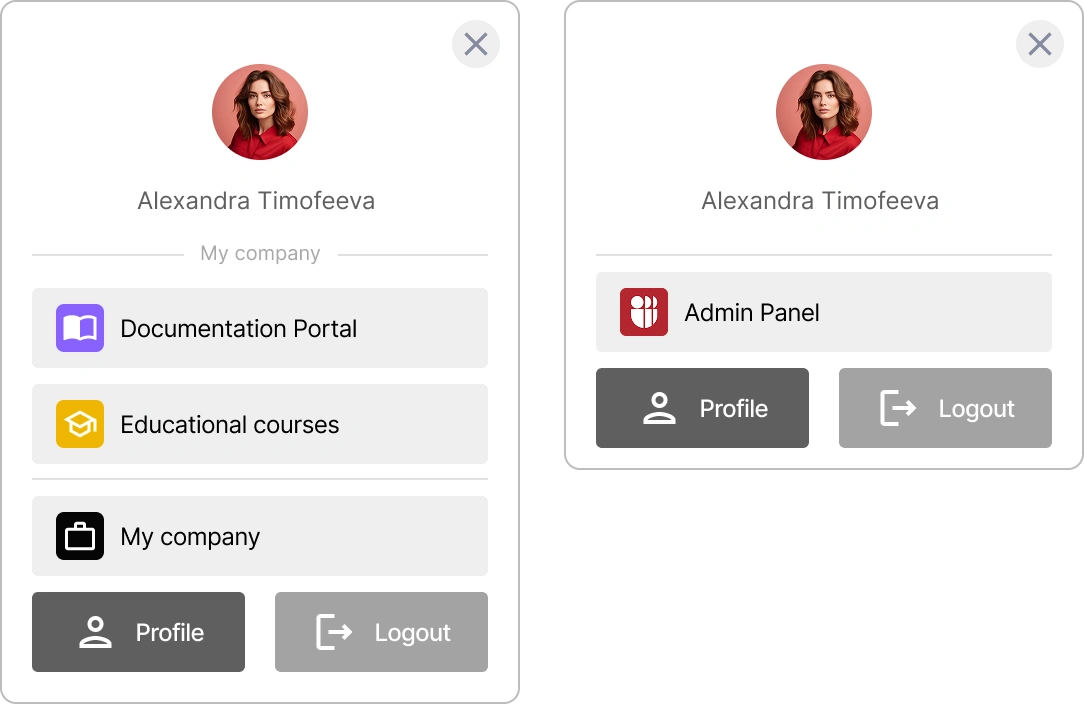

Widget examples:

Required Parameters#

For basic widget operation, three key parameters must be specified:

Parameter	Type	Description	Example
`appId`	`string`	Unique application identifier in Trusted	`"MTnOOTdx85FgNbOFy2nUsH"`
`backendUrl`	`string`	Your backend API URL	`"http://localhost:3001"`
`redirectUrl`	`string`	URL for redirection after authorization	`"http://localhost:3000/login"`

Optional Parameters#

Optional parameters are available for advanced configuration:

Parameter	Type	Description	Default Value
`issuer`	`string`	Trusted SSO server URL	`"https://id.kloud.one"`
`withOutHomePage`	`boolean`	Automatic redirect to authorization	`false`
`getTokenEndPoint`	`string`	Endpoint for obtaining a token	`"/api/oidc/token"`
`getUserInfoEndPoint`	`string`	Endpoint for obtaining user data	`"/api/oidc/me"`
`scopes`	`string[]`	OAuth2 permissions	`["openid", "lk", "profile"]`
`profile`	`IProfileConfig`	User profile settings	See section below
`loginButton`	`ICustomMenuButton`	Login button settings	See section below
`menuButtons`	`ICustomMenuButton[]`	Array of additional buttons	See section below
`customStyles`	`ICustomStyles`	Global widget styles	See section below

Basic Connection Example#

import { TrustedWidget, TrustedWidgetConfig } from "trusted-widget";

const newConfig: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  issuer: "https://id.kloud.one",
  withOutHomePage: false,
  getTokenEndPoint: "/api/oidc/token",
  getUserInfoEndPoint: "/api/oidc/me",
};

// Component usage
<TrustedWidget config={newConfig} />;

Profile Display Settings#

Profile Configuration Parameters#

The User Profile is a component that contains the avatar and the username.

Parameter	Type	Description	Default Value
`isHideText`	`boolean`	Hide username display	`false`
`wrapper`	`IComponentStyles`	Profile container styles (colors only)	See style section
`button`	`IComponentStyles`	User avatar button styles (colors only)	See style section

⚠️ Important: For profile settings (profile.wrapper and profile.button), only colors (color.text, color.background, color.hover) can be changed and the username can be hidden (isHideText). Other styling parameters (such as borderRadius, padding, position) are not applied to the profile.

Profile Setup Example#

// Example: Avatar only without text
const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  profile: {
    isHideText: true, // Hide name, show avatar only
  },
};

The login button is displayed for unauthorized users. You can customize its text, icon, and styles.

Parameter	Type	Description	Default Value
`text`	`string`	Login button text	`"Login"`
`type`	`string`	Button type	`"login"`
`icon`	`string \\| React.ReactElement`	Image link or React element	`null`
`customStyles`	`IComponentStyles`	Individual styles for the button	See style section

Configuration Example#

// Example: Button with custom icon
const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  loginButton: {
    text: "Login via Trusted",
    type: "login",
    icon: "https://id.kloud.one/favicon.ico", // Custom icon
  },
};

// Example: Simple text button without icon
const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  loginButton: {
    text: "Login",
    type: "login",
    customStyles: {
      isHideIcon: true, // Hide icon
    },
  },
};

Required Parameters#

Parameter	Type	Description	Example
`text`	`string`	Displayed button name	`"TestService"`
`link`	`string`	URL of the page to navigate to	`"https://test.com"`

Optional Parameters#

Parameter	Type	Description	Default Value
`icon`	`string \\| React.ReactElement`	Image link or React element	`null`
`customStyles`	`IComponentStyles`	Individual styles for the button	See style section

Configuration Example#

import { TrustedWidget, TrustedWidgetConfig } from "trusted-widget";

const newConfig: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  menuButtons: [
    {
      text: "TestService",
      link: "https://test.com",
      icon: "https://image.png", // | <Icon />
    },
  ],
};

The widget supports detailed appearance customization via the customStyles object. You can control colors, border radii, padding, and alignment for all elements.

Style Object Structure#

customStyles: {
  global: {
    borderRadius: "8px",        // Global border radius
    color: { /* colors */ }      // Global colors
  },
  components: {
    primaryButton: { /* styles */ },   // Primary buttons
    secondaryButton: { /* styles */ }, // Secondary buttons
    accountButton: { /* styles */ }    // Account menu buttons
  }
}

Custom Style Parameters#

Global Styles#

Parameter	Type	Description	Example
`global.borderRadius`	`string`	Corner radius for all elements	`"12px"`
`global.color`	`IComponentStyles`	Global colors	See below

Component Styles#

Parameter	Type	Description	Purpose
`components.primaryButton`	`IComponentStyles`	Primary button style	"Login", "Profile" button
`components.secondaryButton`	`IComponentStyles`	Secondary button style	"Logout" button
`components.accountButton`	`IComponentStyles`	Account menu button style	Buttons in dropdown menu

IComponentStyles Component Style Parameters#

Parameter	Type	Description	Example
`color.text`	`string`	Text and icon color (HEX)	`"#ffffff"`
`color.background`	`string`	Background color (HEX)	`"#1976d2"`
`color.hover`	`string`	Hover background color (HEX)	`"#1565c0"`
`borderRadius`	`string`	Element corner radius	`"8px"`
`padding`	`string`	Internal padding	`"8px 16px"`
`position`	`"left" \\| "center"`	Content alignment in button	`"center"`
`isHideIcon`	`boolean`	Hide icon in button	`false`

Style Inheritance#

The widget features a smart style inheritance system for the secondaryButton:

If styles are set only for primaryButton, they are automatically applied to secondaryButton, but with increased transparency (via reduced opacity).
If separate styles are set for secondaryButton, transparency is not applied — only the explicitly specified parameters are used.

Style Configuration Example#

Global Style Setup Example#

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  // Default values for global styles
  customStyles: {
    global: {
      color: {
        text: "#666666",
        background: "#ffffff",
      },
      borderRadius: "8px",
    },
    components: {
      accountButton: {
        color: {
          text: "#fff",
          background: "#efefef",
          hover: undefined, // if not set, filter: brightness(90%) is applied
        },
        position: "left",
        isHideIcon: false,
      },
      primaryButton: {
        color: {
          text: "#ffffff",
          background: "#b5262f",
          hover: undefined, // if not set, filter: brightness(90%) is applied
        },
        position: "left",
        isHideIcon: false,
      },
      // secondaryButton not set — primaryButton style with transparency (opacity:0.5) will be used
    },
  },
};

Full Style Configuration Example#

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  // Profile settings
  profile: {
    isHideText: false,
    wrapper: {
      color: {
        text: "#333333",
        background: "#f8f9fa",
      },
    },
    button: {
      color: {
        text: "#333333",
        background: "transparent",
        hover: "rgba(0, 0, 0, 0.08)",
      },
    },
  },
};

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  // Login button with icon
  loginButton: {
    text: "Login",
    type: "login",
    icon: "https://id.kloud.one/favicon.ico",
    customStyles: {
      color: {
        text: "#ffffff",
        background: "#4CAF50",
        hover: "#45a049",
      },
      borderRadius: "8px",
      padding: "10px 20px",
    },
  },
};

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  // Global styles
  customStyles: {
    global: {
      borderRadius: "8px",
    },
    components: {
      primaryButton: {
        color: {
          text: "#ffffff",
          background: "#4CAF50",
          hover: "#45a049",
        },
        position: "center",
        isHideIcon: false,
      },
      secondaryButton: {
        color: {
          text: "#4CAF50",
          background: "transparent",
          hover: "#f1f8e9",
        },
        position: "center",
        isHideIcon: false,
      },
      accountButton: {
        color: {
          text: "#333333",
          background: "#ffffff",
          hover: "#f5f5f5",
        },
        position: "left",
        isHideIcon: false,
      },
    },
  },
};

For each button in menuButtons, you can set individual styles via the customStyles property of type IComponentStyles.

Example with Individual Button Styles#

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  menuButtons: [
    {
      text: "Personal Account",
      link: "https://my-account.com",
      icon: "https://icons.com/profile.png",
      customStyles: {
        color: {
          text: "#ffffff",
          background: "#4CAF50", // Green background
          hover: "#45a049", // Dark green on hover
        },
        borderRadius: "8px",
        padding: "8px 16px",
        position: "center",
      },
    },
    {
      text: "Settings",
      link: "https://settings.com",
      icon: "https://icons.com/settings.png",
      customStyles: {
        color: {
          text: "#333333",
          background: "#f5f5f5", // Light gray background
          hover: "#e0e0e0", // Gray on hover
        },
        borderRadius: "6px",
        padding: "6px 12px",
        position: "left",
      },
    },
    {
      text: "Support",
      link: "https://support.com",
      customStyles: {
        color: {
          text: "#ffffff",
          background: "#FF5722", // Orange background
          hover: "#E64A19", // Dark orange on hover
        },
        borderRadius: "4px",
        padding: "10px 20px",
        position: "center",
        isHideIcon: true, // Hide icon for this button
      },
    },
  ],
};

Style Application Priority#

Individual button styles (customStyles in the button object) — highest priority
accountButton styles (customStyles.components.accountButton) — if individual styles are not set
Default styles — if previous ones are not set

const config: TrustedWidgetConfig = {
  appId: "MTnOOTdx85FgNbOFy2nUsH",
  backendUrl: "http://localhost:3001",
  redirectUrl: "http://localhost:3000/login",
  // If a button has NO customStyles, accountButton styles are applied to menuButtons
  customStyles: {
    components: {
      // default accountButton styles
      accountButton: {
        color: {
          text: "#666666",
          background: "#efefef",
          hover: undefined, // if not set, filter: brightness(90%) is applied
        },
        position: "left",
      },
    },
  },
};

Principle	What it means	How to apply it
Centralized Management	All appearance settings are defined via three key configuration objects.	Configure the general look in `customStyles`, profile in `profile`, and login button in `loginButton`.
Flexible Profile Setup	The appearance of the block with the name and avatar of the authorized user is configured separately.	Use `profile.wrapper` for the background and `profile.button` for the avatar button. Note that only color settings work here.
Login Button Setup	Styles for the button seen by unauthorized users are configured independently.	Define text, icon, and styles in the `loginButton` object and its `customStyles` property.
Color Structure	The color scheme for any element is described uniformly.	Always use a nested `color` object with `text`, `background`, and `hover` fields (e.g., `color: {text: "#fff", background: "#1976d2"}`).
Display Management	Text labels or icons can be easily hidden.	Use the `isHideText` (hide text) and `isHideIcon` (hide icon) flags in component styles.
Flexible Alignment	Content inside buttons can be aligned to the left or center.	Set the `position: "left"` or `position: "center"` property in the styles of the desired button.
Smart Inheritance	The system fills configuration gaps using logical default values.	- For `secondaryButton`: if styles are not set, it inherits `primaryButton` with added transparency. - For `hover`: if color is not specified, `filter: brightness(90%)` is applied to the background on hover.
Fallback System	Buttons in the dropdown menu use general styles if individual ones are not set.	If a button in `menuButtons` lacks its own `customStyles`, styles from `accountButton` are automatically applied.
Global Border Radius	A single corner radius value can be set for all widget elements.	Specify `customStyles.global.borderRadius` (e.g., `"8px"`), and it will affect buttons and modal windows.
Individual Customization	Any button in the menu can be styled completely uniquely.	Add a `customStyles` object for a specific element in the `menuButtons` array.

How to Configure and Connect the Encvoy ID Mini-widget#

What is a mini-widget?#

Widget Configuration#

Required Parameters#

Optional Parameters#

Basic Connection Example#

Profile Display Settings#

Profile Configuration Parameters#

Profile Setup Example#

Configuration Example#

Menu Button Parameters#

Required Parameters#

Optional Parameters#

Configuration Example#

Mini-widget Styling#

Style Object Structure#

Custom Style Parameters#

Global Styles#

Component Styles#

IComponentStyles Component Style Parameters#

Style Inheritance#

Style Configuration Example#

Global Style Setup Example#

Full Style Configuration Example#

Full Configuration with Global Styles and Menu Example#

Individual Menu Button Styling#

Example with Individual Button Styles#

Style Application Priority#

Mini-widget Styling Principles#

See Also#

How to Configure and Connect the Encvoy ID Mini-widget#

What is a mini-widget?#

Widget Configuration#

Required Parameters#

Optional Parameters#

Basic Connection Example#

Profile Display Settings#

Profile Configuration Parameters#

Profile Setup Example#

Login Button Settings#

Login Button Parameters#

Configuration Example#

Menu Button Parameters#

Required Parameters#

Optional Parameters#

Configuration Example#

Mini-widget Styling#

Style Object Structure#

Custom Style Parameters#

Global Styles#

Component Styles#

IComponentStyles Component Style Parameters#

Style Inheritance#

Style Configuration Example#

Global Style Setup Example#

Full Style Configuration Example#

Full Configuration with Login Button Example#

Full Configuration with Global Styles and Menu Example#

Individual Menu Button Styling#

Example with Individual Button Styles#

Style Application Priority#

Mini-widget Styling Principles#

See Also#
