How to Create and Configure an Application in Encvoy ID

In this guide, you will learn how to create and configure OAuth 2.0 and OIDC applications in Encvoy ID. We will cover in detail the creation of web and native applications, login widget configuration, and user and access management.

Table of Contents:

• Creating an Application
• Managing Applications
• Application Invitations
• Application Login Widget Settings
• Application Users
• Full Parameters Reference
• See Also

⚠️ Restriction: Application management is available in the administrator, organization, or application (small) dashboard depending on your role.

---

Creating an Application

Creating an OAuth Web Application

Web Application — a standard application that runs in the user's browser and interacts with Encvoy ID using OAuth 2.0 and OpenID Connect protocols.

To create a web application:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click the Create button .
4. The application creation form will open.

5. Specify the required application parameters:

   • Application Name,
   • Application Address in the format protocol://domain-name:port,
   • Redirect URI # (redirect_uris) — the address the user is redirected to after authorization,
   • Post-Logout Redirect URI # (post_logout_redirect_uris) — the address the user is redirected to after logging out.

6. Click Create.

💡 Upon creation, additional application fields are generated, which can be viewed and edited in the application settings:

• Identifier (client_id) — used to identify the application;
• Secret Key (client_secret) — used to authenticate the application's identity when the application requests access to a user's account. The secret key must be known only to the application.

Creating a Native OAuth Application

Native Application — an application developed specifically for a particular operating system.

To create a native application:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click the Create button .
4. The application creation form will open.

5. Specify the required application parameters:

   • Application Name,
   • Application Address — the local address of the application in the format myapp://callback (required to complete creation, but not used in native applications),
   • Redirect URI # (redirect_uris) — the local address the user will be returned to after authorization, e.g., myapp://callback,
   • Post-Logout Redirect URI # (post_logout_redirect_uris) — the local redirect address after logout (e.g., myapp://logout).

6. Click Create.

7. Open the created application and click Edit .

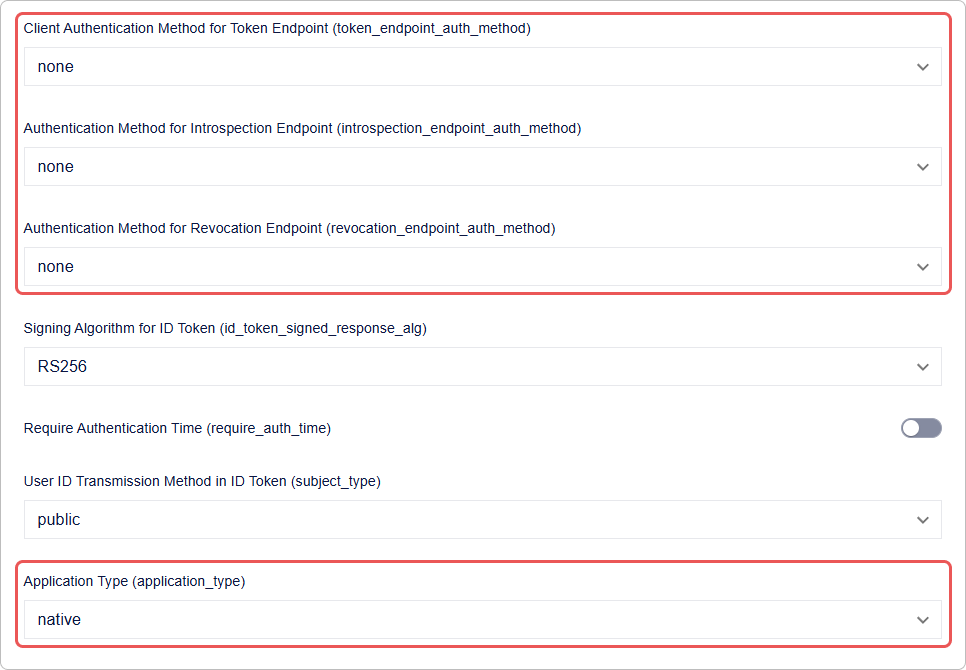

8. In the edit form that opens:

   • Select native in the Application Type setting;
   • Select none in the authentication method settings.



9. Save the changes.

Next, configure authorization on your application's side:

• Use PKCE (Proof Key for Code Exchange) when requesting an authorization code;
• Use the previously specified redirect_uri to handle the authorization result;
• Perform token refresh using the OAuth 2.0 protocol.

---

Managing Applications

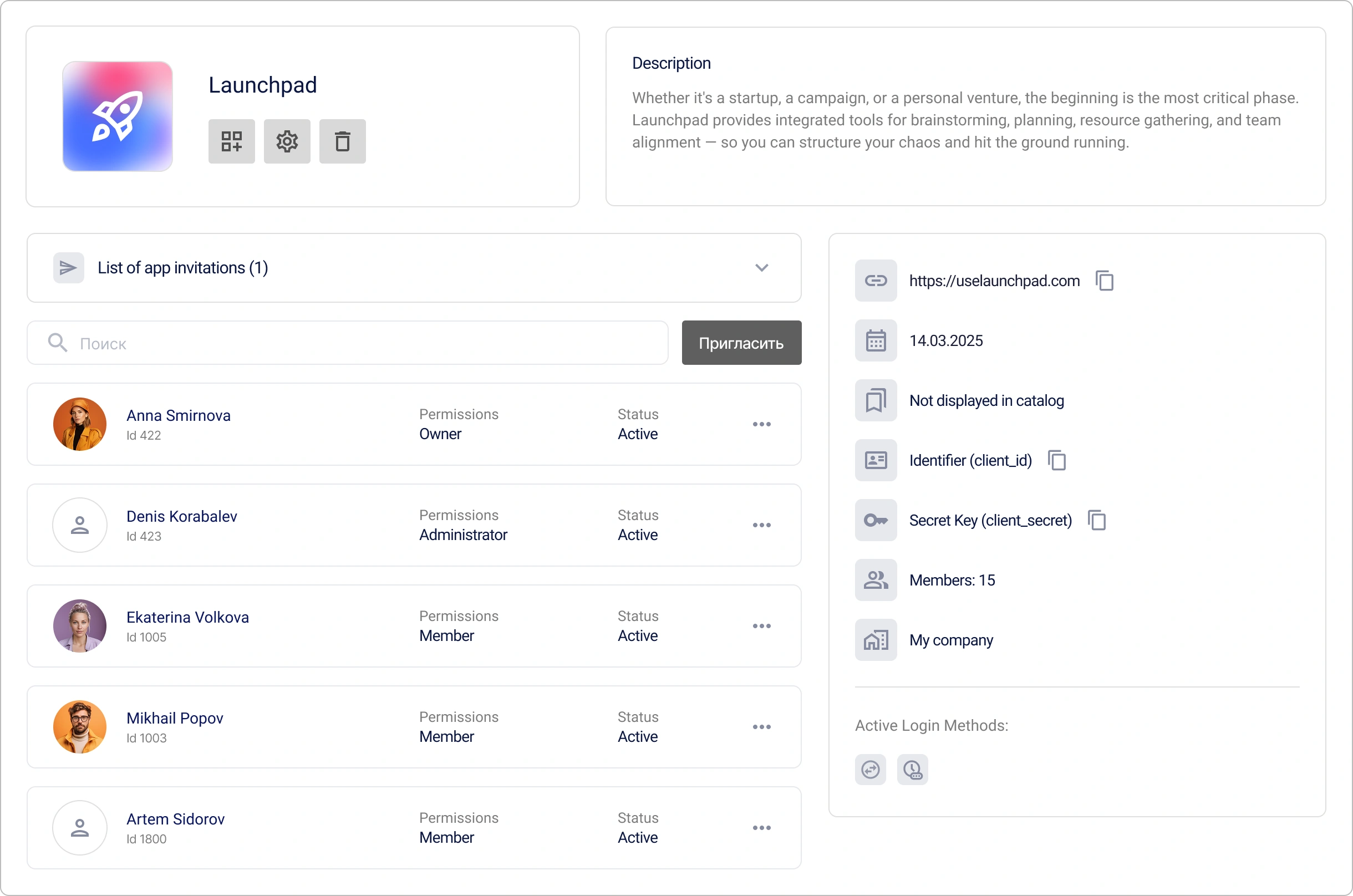

Viewing an Application

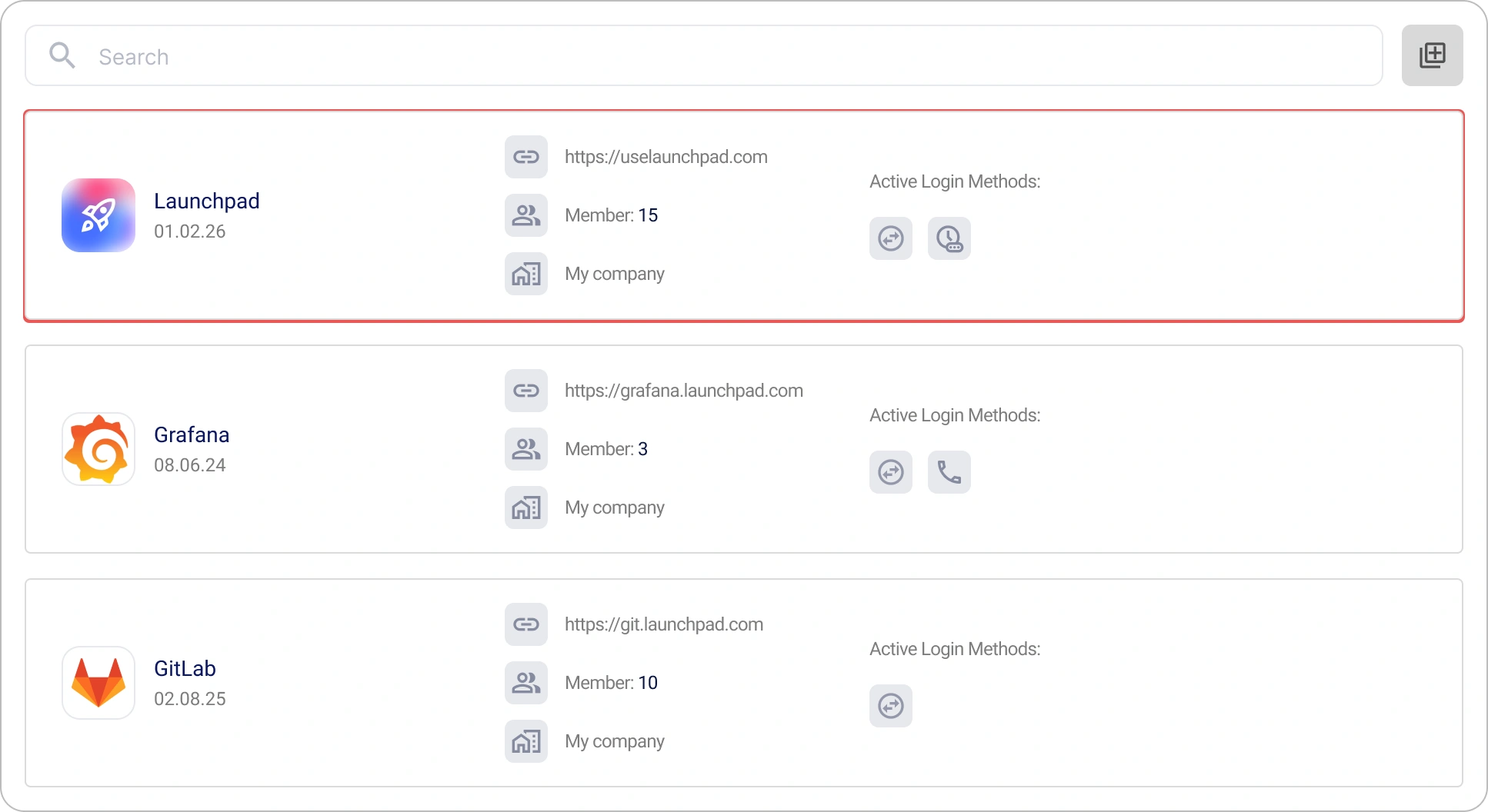

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.

3. Click on the panel of the application whose profile you want to view.



4. The application profile form will open.



Editing an Application

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the panel of the application you want to edit.
4. The application view form will open.
5. Click the Edit button .
6. The application edit form will open.
7. Make the necessary changes to the application parameters.
8. Save the changes.

Deleting an Application

⚠️ Warning: Deleting an application is an irreversible operation. All associated data will be removed from the system.

To delete an application:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the panel of the application you want to edit.
4. The application view form will open.
5. Click the Delete button .
6. Confirm the action in the modal window.

After confirmation, the application will be deleted from Encvoy ID.

---

Application Invitations

The invitation mechanism allows you to restrict access to the application and grant it only to pre-selected users. This is useful if the application is intended for a closed circle of users.

Enabling Access Restriction

To make the application available only to invited users:

1. Open the application edit form. How to open the edit form →
2. Enable the Prohibit access for external users setting.
3. Save the changes.

What happens after enabling:

• Application members — can log in as usual.
• Uninvited users — see an access denied message.
• New users — can only log in after receiving an invitation.

Sending Invitations to Users

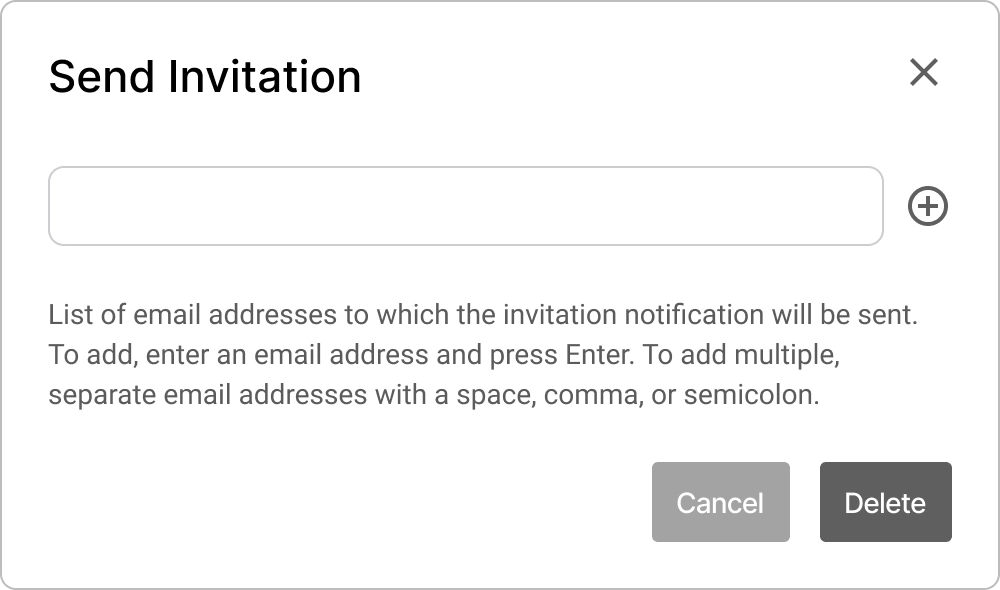

To send an invitation to a user:

1. Open the application view form. How to open the view form →.

2. Click the Invite button.

3. In the window that opens, specify the users' email addresses:

   • Enter the address and press Enter, or click the button;
   • To add multiple addresses, use separators: space, comma ,, or semicolon ;.



4. Click Send.

An email with a link for quick access to the application is sent to the specified email addresses.

💡 Invitations will remain active until canceled or accepted.

What Users See

A user who receives an invitation gets an email containing a link to log in to the application. The invitation is also displayed in the Requests section of the user's personal profile. The invitation can be accepted in two ways: by clicking the link in the email or by selecting the invitation in the "Requests" section of the profile.

How to accept an application invitation →

The invitation is protected by a verification mechanism: it is valid only for the email address to which it was sent. The user must log in to the system using that specific address to accept the invitation. This prevents access from being transferred to other parties.

If the user is not yet registered in the system, they must register using the same email to which the invitation was sent. After successful registration, access to the application is granted automatically.

Managing Invitations

Viewing the List of Sent Invitations

1. Open the application view form. How to open the view form →.
2. Expand the List of sent application invitations section.

For each invitation in the list, the following is displayed:

• Recipient's email
• Date sent

Canceling an Invitation

If you need to revoke a sent invitation:

1. Find the invitation in the sent list.
2. Click the Delete button on the invitation panel.
3. Confirm the invitation cancellation.

Consequences of cancellation:

• The link in the email becomes invalid.
• The user will not be able to accept the invitation.

---

Application Login Widget Settings

The Login Widget is the authorization form that users see when attempting to log in to this specific application. Its settings allow you to adapt the appearance and login methods to your service's brand and needs.

How to Find Widget Settings

1. Open the application edit form. How to open the edit form →
2. Find the Login Methods block and click Configure.

What can be configured:

• Title and Cover — adapt to the application's brand,
• Color Scheme — button colors matching your design,
• Login Methods — choose which providers to show,
• Information Blocks — add usage rules or links.

📚 Full Guide to All Settings:
For a detailed look at all parameters and customization options, go to the full login widget configuration guide →.

---

Application Users

Application Users (members) are Encvoy ID system users who have granted your application permission to access their data.

How a user becomes a member:

1. The user accesses your application for the first time.
2. The system redirects them to the Encvoy ID login widget.
3. The user authenticates and gives consent to access the requested data.
4. The application receives an access token, and the user is added to the members list.

Where to manage members:

• Administrator Dashboard — to manage all service applications.
• Organization Dashboard — for applications belonging to the organization.
• Small Dashboard (Applications) — to manage a specific application.

💡 Important: Member management occurs at the application level. Actions do not affect the user's global Encvoy ID account, only their connection to the specific application.

Viewing Application Members

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the panel of the desired application.
4. The application profile with general information will open.
5. In the application profile, find the members section.
6. Click on the panel of the user whose profile you want to view.

7. The user profile will open, containing a list of data the user has granted access to.



Assigning an Application Administrator

When this is needed: To delegate application management rights to trusted users. Application administrators can manage its settings and users.

To assign an application administrator:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the application panel.
4. The application profile will open.

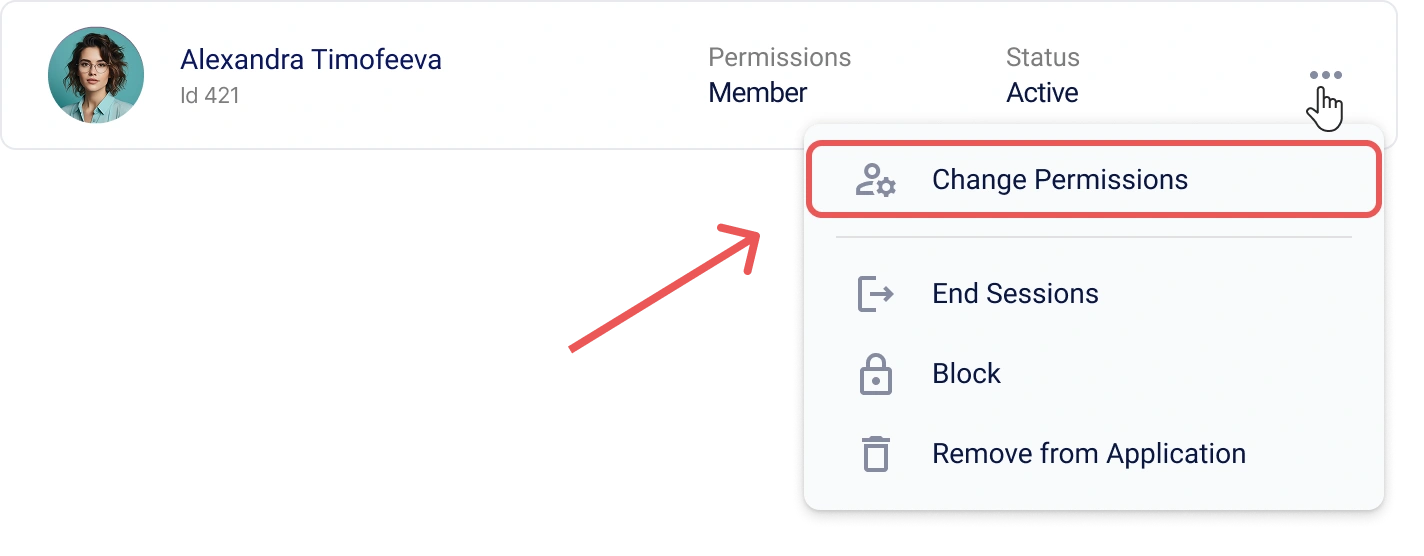

5. Open the action menu for the user whose permissions you want to change.



6. Select the Change Permissions action.

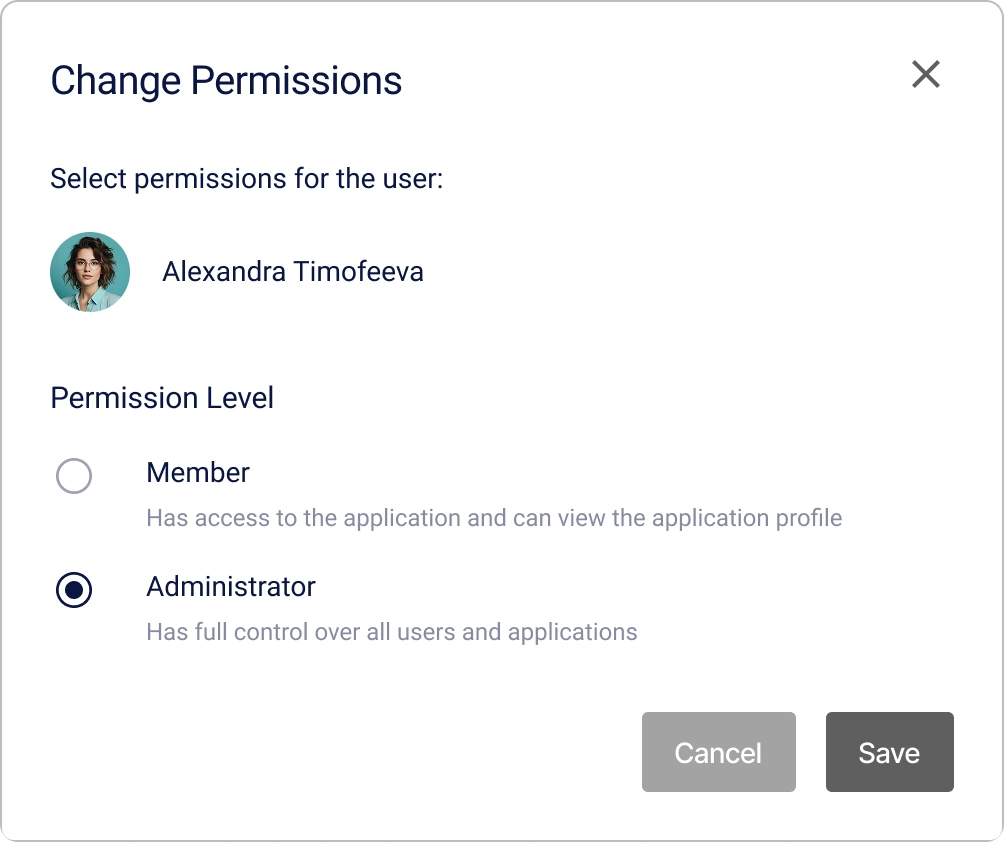

7. In the window that appears, select the Administrator permission level.



8. Click Save.

After saving the changes, the user's permissions in the application will be updated.

✅ What will change:

• The user will gain access to the Small Dashboard of this application.
• They will be able to manage application settings and its users.
• They will not gain access to other applications or organization/service settings.

⚠️ Security: Assign administrator rights only to trusted users. An application administrator can delete other users and change integration settings.

Terminating User Sessions in the Application

When this is needed: In case of suspected account compromise, device loss, or to force an access token refresh.

To terminate a user's sessions:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the application panel.
4. The application profile will open.
5. Open the action menu for the user whose sessions you want to terminate.
6. Select the End Sessions action.
7. Confirm the action in the modal window.

After confirmation, all sessions and tokens for the user will be deleted.

✅ What happens after confirmation:

• All active sessions of the user in this application are terminated.
• Access tokens (access_token) become invalid.
• Refresh tokens (refresh_token) are revoked.
• The user will be required to log in again the next time they access the application.

📌 This operation does not block the user. They will be able to authorize again.

Removing a User from the Application

When this is needed: When a user no longer needs access to the application, upon employee termination, or at the user's request.

To remove a user from the application:

1. Go to the administrator, organization, or application (small) dashboard.
2. Open the Applications tab.
3. Click on the application panel.
4. The application profile will open.
5. Open the action menu for the user you want to remove from the application.
6. Select the Delete User action.
7. Confirm the action in the modal window.

After confirmation, the user will be removed from the application.

✅ What happens after removal:

• The user disappears from the application's members list.
• All their access tokens for this application are revoked.
• The next time they access the application, they will be shown the consent request again.
• The user's global account in Encvoy ID remains untouched.

Blocking a User in the Application

When this is needed: For a complete and permanent ban on a user's access to the application without the possibility of recovery.

Blocking is a more serious action than removal. A blocked user will not be able to gain access to the application.

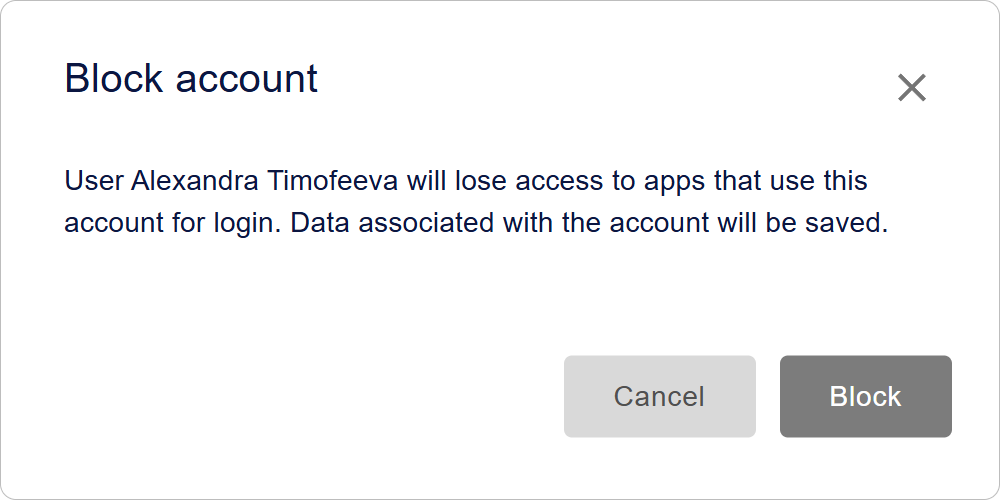

To block a user:

1. Open the action menu for an active user in the application profile.



2. Select the Block in Encvoy ID action.

3. Confirm the action in the modal window.



What happens after blocking:

• The user's status will change to Blocked.
• The blocked user will not be able to log in to the application.

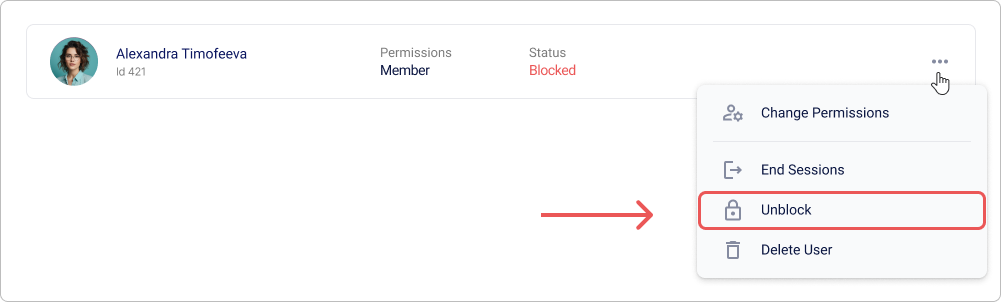

Unblocking Encvoy ID Users

To unblock a user:

1. Open the action menu for a blocked user in the application profile.
2. Select the Unblock in Encvoy ID action.
3. Confirm the action in the modal window.

After confirmation, the user's status will change to Active.

---

Full Parameters Reference

Basic Information

Basic details for display in the interface and on the login widget.

Parameter	Description	Type	Required
Application Name	Displayed in the personal dashboard interface and login widget	Text (up to 64 characters)	✓
Application Description	Short description displayed in the Encvoy ID service interface	Text (up to 255 characters)	✗
Application Logo	Displayed in the Encvoy ID service interface and login widget	Image in JPG, GIF, PNG, WEBP format. Max size - 1 MB.	✗
Display in Mini-Widget	Adds the application to the mini-widget for quick access.	Toggle (On/Off)	-

Catalog

Settings for publishing the application in the Catalog.

Parameter	Description	Type	Default
Display in Catalog	Adds the application to the Catalog	Toggle (On/Off)	Off
Application Type	Category the application belongs to in the Catalog. Type creation is available to the service Administrator.	Dropdown list	Other

Required Fields

User profile fields necessary for the application to function.

Parameter	Description
Main Profile Fields	Defines the list of main and additional user profile fields that the application requires access to. - If fields are missing from the user profile, they will be requested during authorization in the application. - If fields are present but set to privacy level Available only to you, the user will be prompted to change this level to Available on request.

Application Parameters

Technical parameters affecting the application's interaction with Encvoy ID.

Main Identifiers

Name	Parameter	Description	Type	Required
Identifier (client_id)	client_id	Unique application identifier	Text	Generated automatically
Secret Key (client_secret)	client_secret	Client private key. Must be kept secure.	Text	Generated automatically
Application Address	-	URL of the web resource where login via Encvoy ID will be used	Text in protocol://domain-name:port format	✓

Access Settings

Name	Parameter	Description	Type	Default
Restricted Access	-	If enabled, login to the application will only be available to users with Administrator rights	Toggle (On/Off)	Off
Prohibit access for external users	-	If enabled, only members or invited users will have access to the application	Toggle (On/Off)	Off

Redirect URL

Name	Parameter	Description	Required
Redirect URI #	Redirect_uri	The URL to which Encvoy ID will redirect the user after authentication. After the user authenticates and gives consent, the server redirects the user back to the Redirect_uri with an authorization code, ID token, or other information depending on the requested response_type.	✓

Logout URL

Name	Parameter	Description	Required
Post-Logout Redirect URI #	post_logout_redirect_uri	The URL to which the service will redirect the user after logging out. If no value is specified, the Redirect URL (Redirect_uri) is used.	✗

Authentication Request URL

Name	Parameter	Description	Required
Authentication Request or Recovery URL #	request_uris	A list of URLs where JWT authorization requests are hosted. When the system sends an authorization request to the server, it can simply specify the request_uri parameter, which refers to one of the URLs defined in this list. The server then retrieves the JWT request object from this URL to process the request.	✗

Response Types

Name	Parameter	Description
Response Types (response_types)	response_types	Defines which tokens are returned to the client. - code — authorization code only; - id_token — ID token only; - code id_token — code and ID token; - code token — authorization code and access token; - code id_token token — full set; - none — used when no authorization code, access token, or ID token is required via redirection. Useful for confirming user authentication without requiring data access.

Grant Types

Name	Parameter	Description
Grant Types (grant_types)	grant_types	Method of obtaining authorization to access protected resources. - authorization code — standard and secure method; - implicit — legacy option without server-side exchange; - refresh_token — token refresh without re-logging.

Authentication Methods

Name	Parameter	Description
Client Authentication Method for Token Endpoint (token_endpoint_auth_method)	token_endpoint_auth_method	Method the client uses to authenticate when accessing the server's token endpoint. - none - does not provide credentials. Used when the client cannot store credentials confidentially or authentication is not required; - client_secret_post - sends credentials in the request body; - client_secret_basic - uses HTTP Basic Authentication, sending credentials in the request header; - client_secret_jwt - signs a JWT using its secret and sends it as credentials; - private_key_jwt - signs a JWT using its private key and sends it as credentials. The choice depends on security requirements and the client's ability to store credentials securely. For example, client_secret_jwt and private_key_jwt provide higher security by using asymmetric encryption and avoiding secret transmission over the network.
Authentication Method for Introspection Endpoint (introspection_endpoint_auth_method)	introspection_endpoint_auth_method	Method the client uses when accessing the introspection endpoint. This endpoint is used to check the status of an access token and retrieve information about it. - none - no credentials provided; - client_secret_post - credentials in the request body; - client_secret_basic - HTTP Basic Authentication; - client_secret_jwt - signs a JWT with its secret; - private_key_jwt - signs a JWT with its private key. Choice depends on security requirements and client capabilities. JWT-based methods provide extra security via signed tokens.
Authentication Method for Revocation Endpoint (revocation_endpoint_auth_method)	introspection_endpoint_auth_method	Defines the authentication method used when accessing the revocation endpoint. This endpoint is used to revoke access or refresh tokens. This method usually matches those used for the token endpoint and introspection endpoint. - none - no credentials provided; - client_secret_post - credentials in the request body; client_secret_basic - HTTP Basic Authentication; - client_secret_jwt - signs a JWT with its secret; - private_key_jwt - signs a JWT with its private key.

ID Token Signing Algorithm

Name	Parameter	Description
Signing Algorithm for ID Token (id_token_signed_response_alg)	id_token_signed_response_alg	Specifies the algorithm used to sign the ID token. An ID token is a JSON Web Token (JWT) containing claims about the user's authentication.

Require Authentication Time

Name	Parameter	Description
Require Authentication Time (require_auth_time)	require_auth_time	Specifies whether the authorization server must provide the user's authentication time in the ID token. If enabled, the server includes the auth_time claim, representing when the user last authenticated.

Subject Type

Name	Parameter	Description
User ID Transmission Method in ID Token (subject_type)	subject_type	Defines how the user identifier (sub claim) is presented to the client. This affects how user IDs are generated and managed. - public - the user ID is the same for all clients. Every client sees the same sub claim for the user; - pairwise - the user ID is unique for each client. This provides greater privacy as different clients cannot link user activity together.

Application Type

Name	Parameter	Description
Application Type (application_type)	application_type	Defines the platform the application is intended for: - web - web application running in a browser; - native - native application installed on a device.

Access Token

Name	Parameter	Description
Access Token (access_token_ttl)	access_token_ttl	access_token lifetime in seconds

Refresh Token

Name	Parameter	Description
Refresh Token (refresh_token_ttl)	refresh_token_ttl	refresh_token lifetime in seconds

---

See Also

• Managing Organizations — guide to working with Encvoy ID system organizations.
• Personal Profile and Application Permission Management — guide to managing your personal profile.
• Login Methods and Login Widget Configuration — guide to login methods and login widget configuration.
