How to Connect GitHub Login in Encvoy ID#

📋 This instruction is part of a series of articles on configuring login methods. For more details, read the Login Methods and Widget Configuration guide.

In this guide, you will learn how to connect authentication using a GitHub account to the Encvoy ID system. This login method allows users to sign in to applications using their GitHub service account.

Setting up GitHub login consists of three key steps performed in two different systems.

Step 1. Configure GitHub App#

Before configuring the login method in Encvoy ID, you must register your application in the GitHub developer console and obtain access keys:

  1. Go to the GitHub settings via the link: https://github.com/settings/developers

  2. In the OAuth Apps section, click New OAuth App.

  3. Fill in the required application settings:

    • Application name - the name of the application,
    • Homepage URL - the address of the service installation,
    • Authorization callback URL - the address in the format https://<installation_address>/api/interaction/code.

    Creating a GitHub OAuth login method in the service developer console

  4. Click Register application.

  5. After creating the application, open its settings and copy:

    • Client ID
    • Client Secret (created via the Generate a new client secret button)

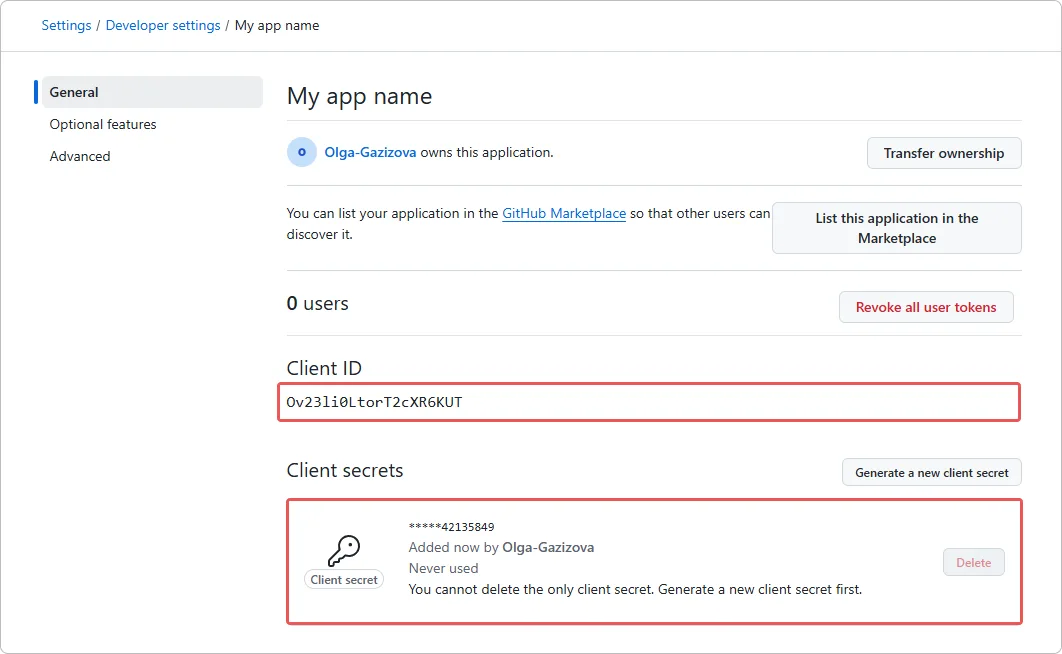

    Creating a GitHub OAuth login method in the service developer console

These values will be needed in the next step.

Step 2. Create Login Method#

  1. Go to the Admin Console → Settings tab.

    💡 To create a login method for an organization, open the Organization Console. If the login method is needed for a specific application, open the settings of that application.

  2. Find the Login Methods block and click Configure.

  3. In the window that opens, click the Create button Create Button.
  4. A window with a list of templates will open.
  5. Select the GitHub template.

  6. Fill out the creation form:

    Basic Information

    • Name — The name that users will see.
    • Description (optional) — A brief description.
    • Logo (optional) — You can upload your own icon, or the standard one will be used.

    Authentication Parameters

    • Client ID (client_id) — Paste the copied Client ID.
    • Client secret (client_secret) — Paste the copied Client Secret.
    • Redirect URI — This field will be filled automatically based on your domain.

    Additional Settings

    • Public login method — Enable this if you want this login method to be available for addition to other applications in the system (or organization), as well as to the user profile as an external service identifier.
    • Publicity — Configure the default publicity level for the external service identifier in the user profile.

  7. Click Create.

After successful creation, the new login method will appear in the general list of providers.

Step 3. Add to Widget#

To make the Sign in with GitHub button visible on the authorization form, you need to activate this feature in the widget settings:

  1. In the general list of providers, find the created login method.
  2. Turn on the toggle switch on the provider panel.

Verification: After saving, open the login form in a test application. A new button with the GitHub logo should appear on the widget.

Parameter Descriptions#

Basic Information#

Name Description Type Constraints
Name The name that will be displayed in the Encvoy ID service interface Text Max. 50 characters
Description A brief description that will be displayed in the Encvoy ID service interface Text Max. 255 characters
Logo The image that will be displayed in the Encvoy ID service interface and the login widget JPG, GIF, PNG, or WEBP Max. size: 1 MB

Authentication Parameters#

Name Parameter Description
Client ID (client_id) Client_id The ID of the application created in GitHub
Client secret (client_secret) Client_secret The service access key of the application created in GitHub
Redirect URI (non-editable) Redirect URI The Encvoy ID address to which the user is redirected after authentication in the third-party service

Additional Settings#

Name Description
Public login method When activated:
- The login method becomes available for addition to other service applications.
- The login method becomes available for addition as an external service identifier in the user profile.
Publicity Sets the default publicity level for the external service identifier in the user profile
