How to Connect Google Login in Encvoy ID#

📋 This instruction is part of a series of articles on configuring login methods. For more details, read the guide Login Methods and Widget Configuration.

In this guide, you will learn how to connect authentication using a Google account to the Encvoy ID system. This login method allows users to sign in to applications using their Google service account.

Setting up Google login consists of three key steps performed in two different systems:

Step 1. Configure the Application in Google#

Before configuring the login method in Encvoy ID, you must register your application in the Google developer console and obtain access keys:

  1. Sign in with your Google account.
  2. Open the Google Cloud Console.

  3. Create a new project:

    • In the top panel, click Select a project → New Project.
    • Specify the project name (e.g., Trusted.ID Login or your website name).
    • Click Create.

    🔗 For more details, read the instructions on developers.google.com.

  4. Configure the OAuth consent screen. If you have previously performed these settings, skip this step.

    • Go to APIs and Services → OAuth consent screen.

    Creating a Google OAuth login method in the service developer console

    • Open the Branding section.
    • Click the Get started button in the center of the window.

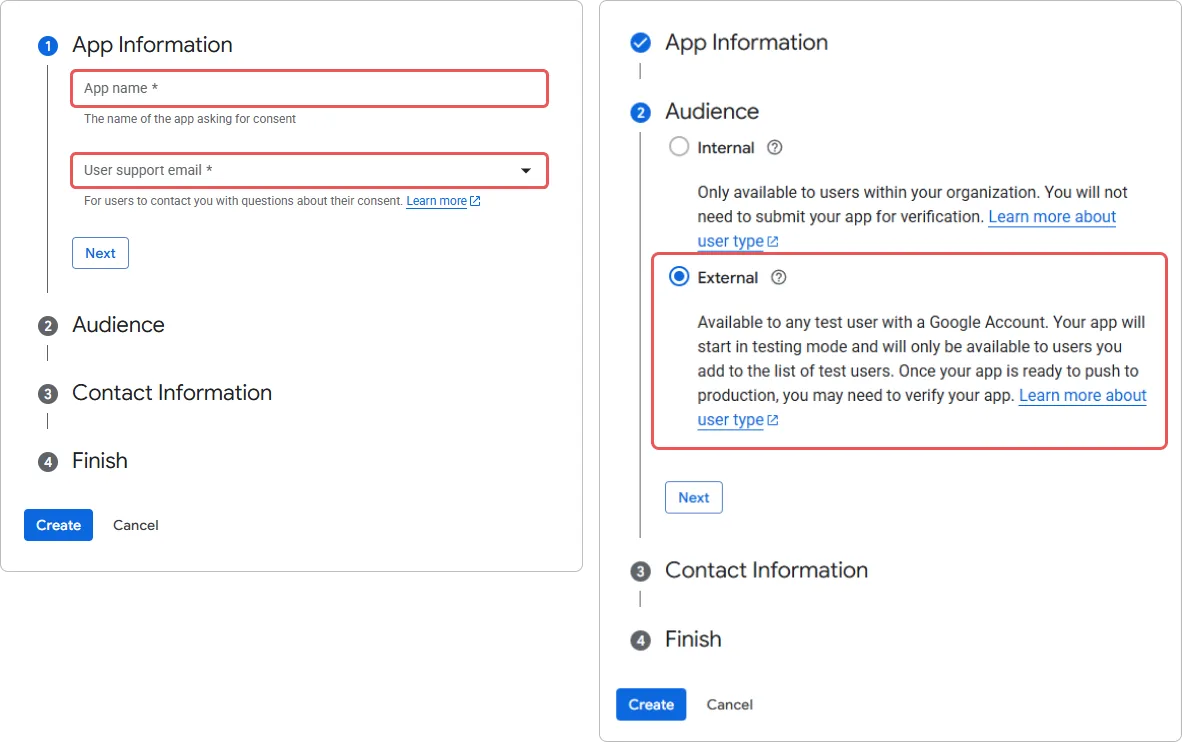

    • Provide App Information: the application name and the email address that will be displayed to users on the consent screen.
    • Select Audience type → External.

    Setting the name for the Google OAuth login method in the service developer console

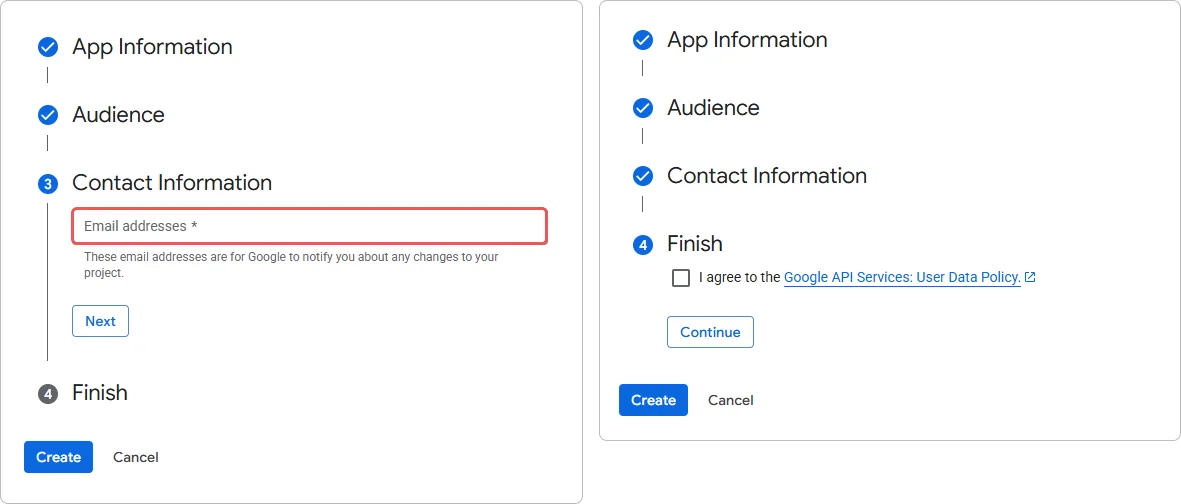

    • Provide an email address for receiving project notifications.
    • Agree to the user policy.

    Setting contact information for the Google OAuth login method in the service developer console

  5. Create an OAuth Client ID:

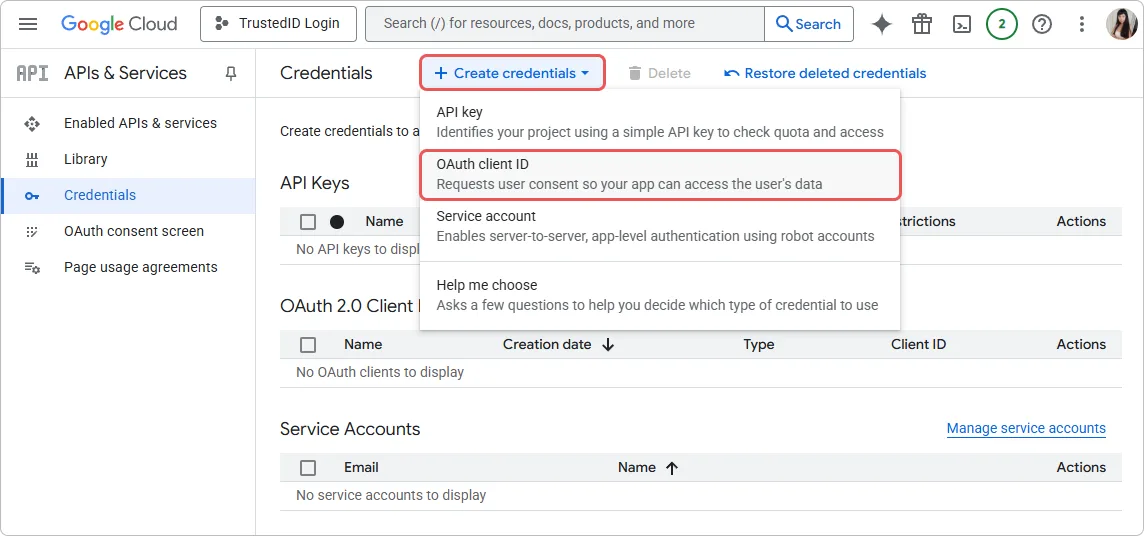

    • Go to APIs and Services → Credentials.
    • Click Create credentials → OAuth client ID.

    Configuring the Google OAuth login method in the service developer console

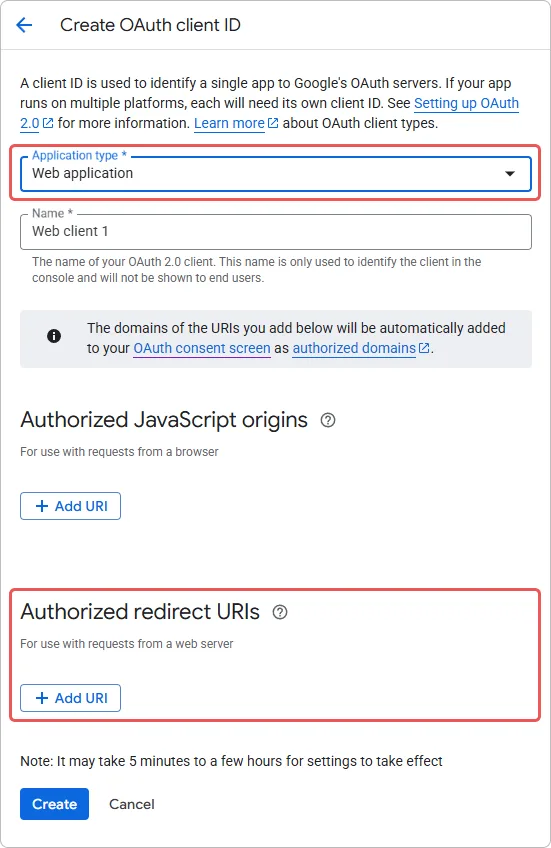

    • Select Type → Web application.
    • Fill in the name and the return URL#1 (Redirect_uri).
    • Click Create.

    Configuring the Google OAuth login method in the service developer console

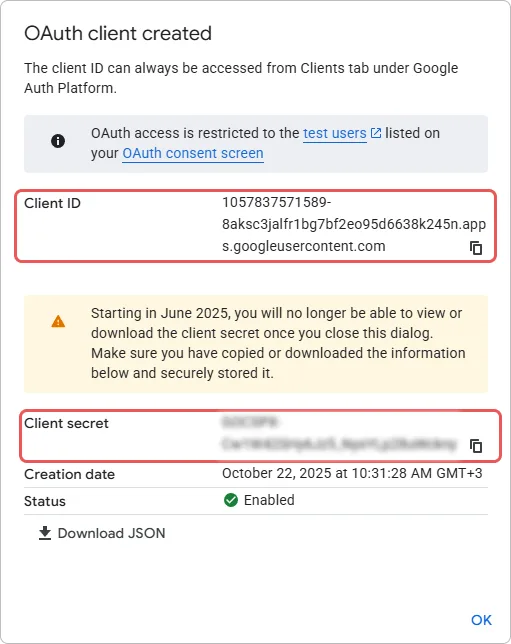

    ⚠️ After creation, a window will appear with the data: Client ID and Client Secret. Save these values — you will need them when configuring in Encvoy ID.

    Configuring the Google OAuth login method in the service developer console

  6. Check the OAuth consent screen settings:

    Before use, ensure that:

    • The consent screen status is Published (Enabled), not In development,
    • The required scopes — email and profile — have been added.

Step 2. Create the Login Method#

Now, with the keys from Google, let's create the corresponding provider in the Encvoy ID system.

  1. Go to the administrator panel → Settings tab.

    💡 To create a login method for an organization, open the organization dashboard. If the login method is needed for a specific application, open that application's settings.

  2. Find the Login Methods block and click Configure.

  3. In the window that opens, click the Create button Create Button.
  4. A window with a list of templates will open.
  5. Select the Google template.

  6. Fill out the creation form:

    Basic Information

    • Name — The name that users will see.
    • Description (optional) — A brief description.
    • Logo (optional) — You can upload your own icon, or the standard one will be used.

    Authentication Parameters

    • Client ID (client_id) — Paste the copied Application ID (Client ID).
    • Client secret (client_secret) — Paste the copied Secret (Client Secret).
    • Redirect URI — This field will be filled automatically based on your domain.

    Additional Settings

    • Public login method — Enable this if you want this login method to be available for addition to other system (or organization) applications, as well as to the user profile as an external service identifier.
    • Publicity — Set the default publicity level for the external service identifier in the user profile.

  7. Click Create.

After successful creation, the new login method will appear in the general list of providers.

Step 3. Add to the Widget#

To make the Sign in with Google button visible on the authorization form, you need to activate this function in the widget settings:

  1. In the general list of providers, find the created login method.
  2. Toggle the switch on the provider panel.

Verification: After saving, open the login form in a test application. A new button with the Google logo should appear on the widget.

Parameters Description#

Basic Information#

Name Description Type Constraints
Name The name that will be displayed in the Encvoy ID service interface Text Max 50 characters
Description A brief description that will be displayed in the Encvoy ID service interface Text Max 255 characters
Logo The image that will be displayed in the Encvoy ID service interface and the login widget JPG, GIF, PNG, or WEBP Max size: 1 MB

Authentication Parameters#

Name Parameter Description
Client ID (client_id) Client_id The ID of the application created in Google
Client secret (client_secret) Client_secret The service access key of the application created in Google
Redirect URI (non-editable) Redirect URI The Encvoy ID address to which the user is redirected after authentication in the third-party service

Additional Settings#

Name Description
Public login method When activated:
- The login method becomes available for addition to other service applications.
- The login method becomes available for addition as an external service identifier in the user profile.
Publicity Sets the default publicity level for the external service identifier in the user profile
