How to Connect TOTP Login in Encvoy ID#

📋 This instruction is part of a series of articles on configuring login methods. For more details, read the Login Methods and Widget Configuration guide.

In this guide, you will learn how to connect TOTP one-time password authentication to the Encvoy ID system.

Who this instruction is for:

  • Administrators — to configure the login method in the system.
  • Users — to link TOTP to their profile.

Setting up TOTP login consists of several key stages:

General Information#

TOTP (Time-based One-Time Password) is an algorithm for generating one-time passwords valid for a short period of time.

💡 To create a login method based on HOTP, use the How to Connect HOTP Login instruction.

The main difference between TOTP and HOTP is that the password generation is based on the current time. Usually, it does not use an exact timestamp but rather the current interval with pre-defined boundaries (typically 30 seconds).

Main Components:

  • Authentication Server — the server that generates the secret key and verifies the entered codes.
  • Authenticator — an application that stores the secret key and generates the current OTP.
  • Secret Key — a shared base between the server and the application used for code generation.

TOTP Workflow#

  1. Preliminary Setup

    • The administrator creates a TOTP login method and activates it for the widgets of the required applications.
    • The user adds a new TOTP identifier in their profile by scanning a QR code containing the secret key via an authenticator app.

  2. Code Generation and Verification

    • The authenticator app calculates a one-time password based on the secret key and the current time interval (usually 30 seconds) using the SHA1, SHA256, or SHA512 algorithm.
    • When the user enters the code on the login form, the server recalculates the expected code using the same secret and current time.
    • If the entered code matches the expected one, the user is granted access.

🚨 Important: The time on the user's device and the server must be synchronized. Time mismatch is the most common reason for code rejection. To compensate for small time differences, the server may accept codes from adjacent time intervals (usually ±1 interval).

Authentication Setup for Administrators#

Step 1. Creating a Login Method#

  1. Go to the Admin Panel → Settings tab.

💡 To create a login method for an organization, open the Organization Dashboard. If the login method is needed for a specific application, open that application's settings.

  1. Find the Login Methods block and click Configure.
  2. In the window that opens, click the Create button Create Button.
  3. A window with a list of templates will open.
  4. Select the TOTP template.

  5. Fill out the creation form:

    Basic Information

    • Name — The name that users will see.
    • Description (optional) — A brief description.
    • Logo (optional) — You can upload your own icon, or the default one will be used.

    Parameters

    • Number of digits — Number of digits in the one-time password (usually 6).
    • Validity period — Validity period of the one-time password in seconds (30 is recommended).
    • Algorithm — Hashing algorithm (SHA1, SHA256, or SHA512) (usually SHA-1).

    Additional Settings

    • Public login method — Enable this if you want this login method to be available for addition to other system (or organization) applications, as well as to the user profile as an external service identifier.
    • Publicity — Configure the default publicity level for the external service identifier in the user profile.

  6. Click Create.

After successful creation, the new login method will appear in the general list of providers.

Step 2. Adding the TOTP Provider to the Widget#

For users to see the TOTP button on the authorization form, you need to activate this feature in the widget settings:

  1. Find the created login method in the general list of providers.
  2. Toggle the switch on the provider panel to the "On" position.

Verification: After saving, open the login form in a test application. A new button with the TOTP logo should appear on the widget.

TOTP Binding for Users#

📌 This instruction is intended for users who need to log in to the system via TOTP.

Step 1. Installing an Authenticator App#

You need to install an application on your mobile device that generates TOTP codes.

The most popular options are:

  • Yandex Key (Yandex)
  • Google Authenticator (Google)

💡 Ensure that the time on your mobile device is set to update automatically (via the network). Incorrect time is the most common reason why codes are not accepted.

Step 2. Adding a TOTP Identifier to the Profile#

  1. Go to your Profile.

  2. Click Add in the Identifiers block.

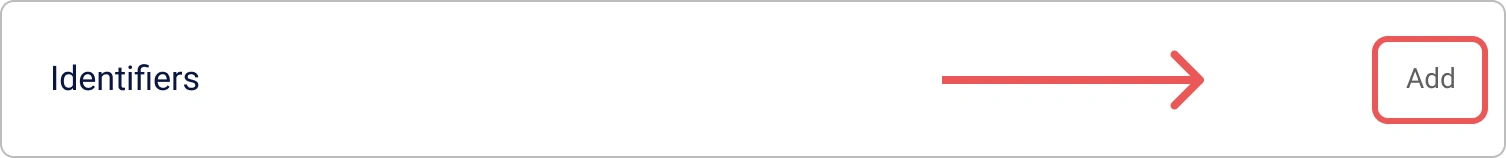

    Identifier block in Encvoy ID user profile

  3. In the window that opens, select the TOTP login method.

  4. Scan the QR code using your authenticator app.

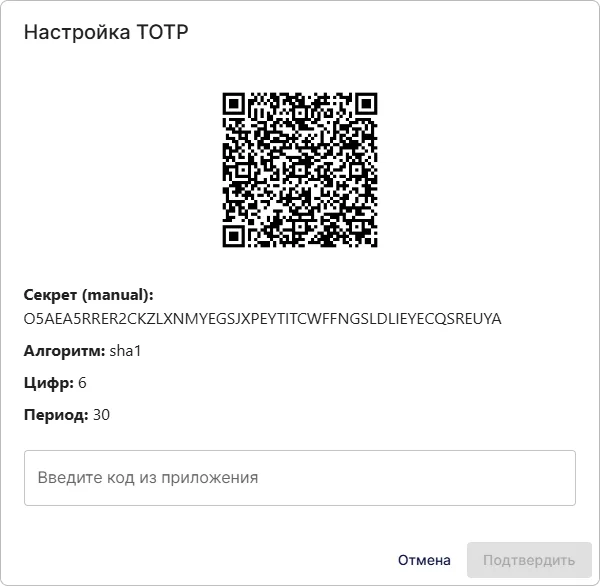

    Dialog for adding a TOTP identifier in Encvoy ID user profile

  5. Enter the code from the app and confirm.

💡 Tip: If the identifier is already linked to another user, you must remove it from that user's profile before linking it to the new account.

Step 3. Verification#

  1. Go to the login page where the TOTP login method is enabled.
  2. Select the TOTP login method icon.
  3. A form for entering the code will open.

  4. Enter your login.

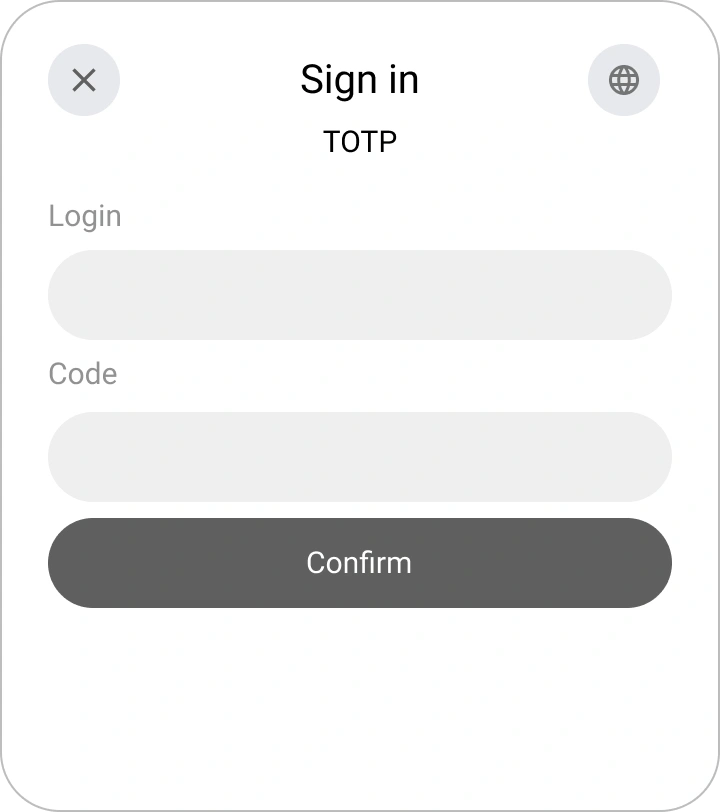

    Example of login widget for TOTP identifier in Encvoy ID

  5. Without closing the page, open the authenticator app on your phone. Copy the 6-digit code and paste it into the form.

  6. Click the Confirm button.

🔄 If the code is not accepted: Ensure that the time on your phone and the server is synchronized. Try waiting for the next code to be generated (a new one appears every 30 seconds). If the problem persists, contact your administrator.
